GGBS Production Line

【Capacity】:

Blast Furnace Slag Capacity:1.5-25(t/h) Cement Capacity:3-50(t/h) Raw Material Capacity:6-110(t/h)

【Main Materials】:

400×730-1260×2040mm

【Main Equipment】:

  • Introduction
  • Features
  • Parameter
  • Related Cases

INTRODUCTION

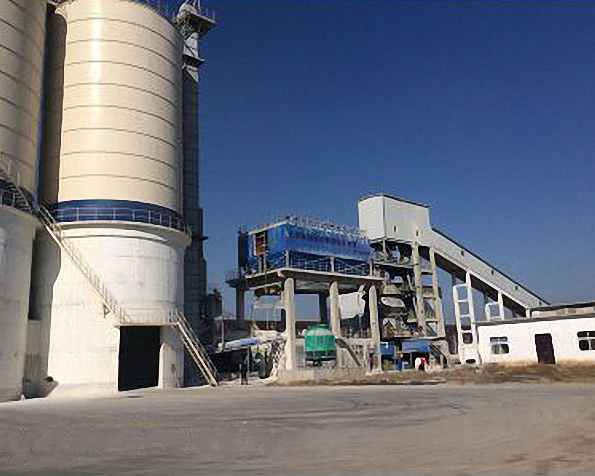

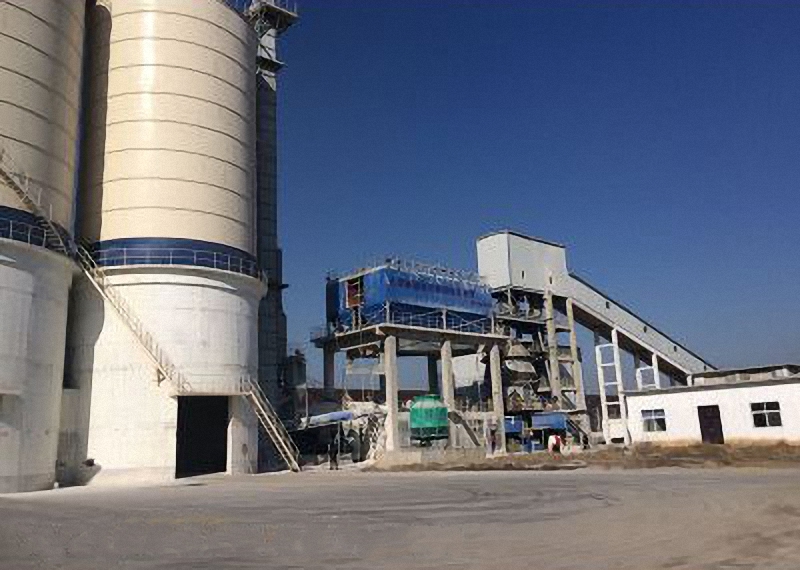

Production Process By Vertical Mill

Slag is transported into the plant by truck and stored under the shed. After reclaiming by loader and metering by feeder, the material is delivered and de-ironed into the vertical mill by the belt conveyor and its magnetic separator.

After de-ironing the slag enter the vertical mill for grinding. Dried and grinded slag powder is collected by the separator and sent into the finished product silo by air chute and bucket elevator. The discharged slag is sent back to the mill by conveyor and elevator. The drying heat source is provided by an air heating furnace.



FEATURES

1. Comprehensive service

We ZK company is the professional slag powder production line supplier. We can provide both ball mill and vertical mill production process, while providing 'turnkey' service from civil engineering to commissioning.

2. Serious Quality Control

ZKCorp has a strong capacity of manufacturing and could control product quality seriously with short delivery time. Expert Installation and After-service Team could ensure to finish plant installation and start running on time

3. Low cost and proper investment.

 Slag Vertical Mill Production Line from ZKCorp engages the advantages of simple process flow, high-efficiency of grinding, great drying capacity, efficient Powder-classifying, easily-adjustable outputting size, low noise and electricity-consumption, small mill consumption, high degree of automation, low running expense, which make it suitable for small and middle plant owner.



PAEAMETER

Vertical Mill Configuration Table

小时产量(t/h)闭路
 Hourly Capacity

年产量(×10kt/a
 Annual Capacity

立磨型号
 Vertical Mill Model

磨盘直径
mm
 Disc Diameter

立磨电机功率(kW
 Vertical Mill Motor Power

高炉矿渣
 Blast Furnace Slag

水泥
 Cement

生料
 Raw Material

高炉矿渣
 Blast Furnace Slag

水泥
 Cement

生料
 Raw Material

直径
 Diameter

中径
 Roller Diameter

1.5~2

3~4

6~8

1.5

3

5.5

ZKRM08.2

1200

800

55

3~4

5~6

10~12

3

4.5

9

ZKRM11.2

1500

1100

110

8~9

11~13

20~22

6

9.5

17

ZKRM13.2

1700

1300

185

9~10

14~16

26~34

8

12

24

ZKRM15.2

1900

1500

250

12~14

20~23

40~50

10

17

36

ZKRM17.2

2100

1700

355

15~17

24~26

50~60

13

20

43.5

ZKRM19.2

2300

1900

450

18~20

27~30

60~75

15

22.5

55

ZKRM20.2

2400

2000

560

23~25

40~50

85~110

20

35.5

77

ZKRM22.3

2600

2200

710


Ball Mill Configuration Table

小时产量(t/h
 Hourly Capacity

年产量(×10kt/a
 Annual Capacity

球磨机
型号
 Ball Mill Model

选粉机
型号
 Separator Model

球磨机电机功率(kW
 Ball Mill Motor Power

高炉矿渣
 Blast Furnace Slag

水泥
 Cement

生料
 Raw Material

高炉矿渣
 Blast Furnace Slag

水泥
 Cement

生料
 Raw Material

1.5~2

3~4

6~8

1.5

3

5.5

φ1.2×4.5m

NHX200

55

3~4

5~6

10~12

3

4.5

9

φ1.5×5.7m

NHX300

130

8~9

11~13

20~22

6

9.5

17

φ2.2×9m

NHX400

475

9~10

14~16

26~34

8

12

24

φ2.2×11m

NHX400

570

12~14

20~23

40~50

10

17

36

φ2.4×11m

NHX500

630

15~17

24~26

50~60

13

20

43.5

φ2.4×13m

NHX500

800

18~20

27~30

60~75

15

22.5

55

φ2.6×10m

NHX600

1000

23~25

40~50

85~110

20

35.5

77

φ3.0×11m

NHX700

1250
