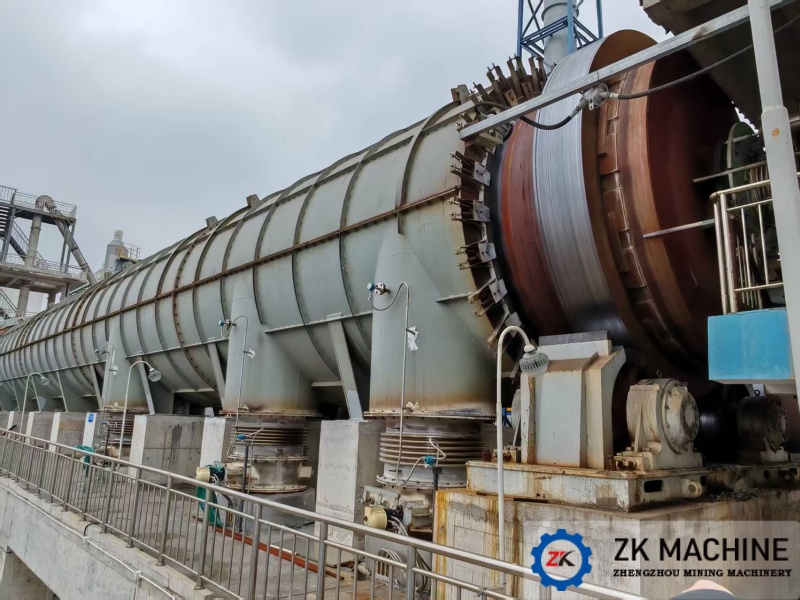

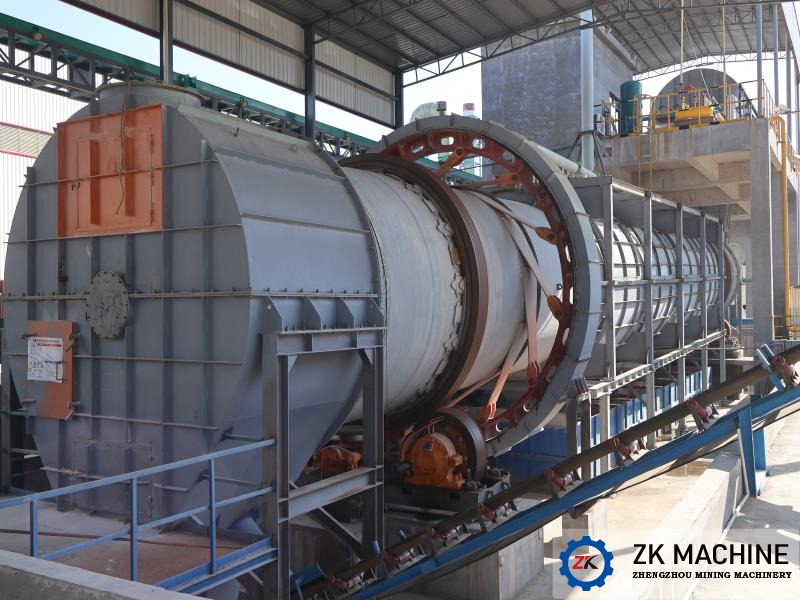

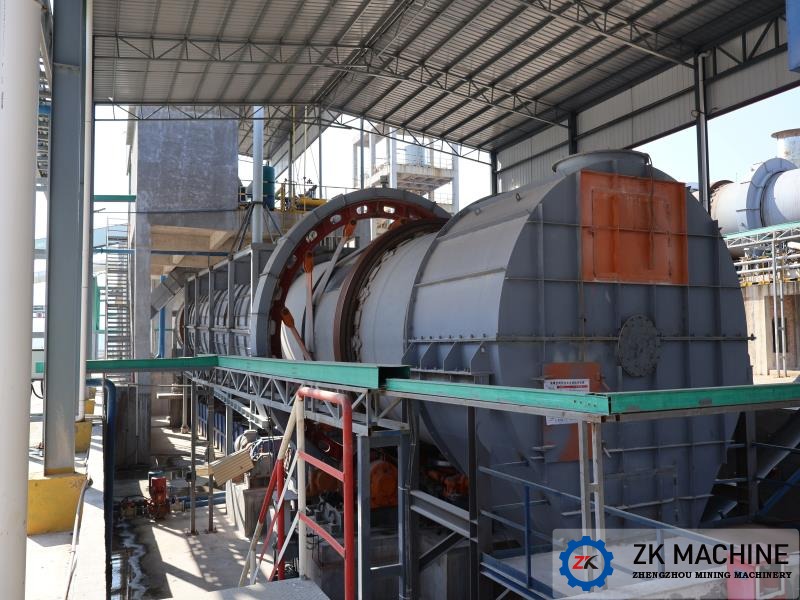

Acidizing Roasting Kiln

Model:Φ0.8-5.5m
Capacity:0.2-60t/h

Raw Materials:

spodumene, phosphogypsum, etc.

Application:

It is suitable for the acidification roasting of lithium concentrates such as spodumene and amblygonite.

Chat Online Leave Message

Introduction

The company can produce rotary kiln with diameter Φ1-Φ6m, which is used for acidification roasting of lithium concentrate by new lithium battery materials. The support of this kind of kiln is divided into rolling and sliding types, The drive can adopt DC or AC frequency conversion speeder regulation, and there are various forms of seals to adapt to different working conditions. The company can design various non-standard kilns according to the special requirements of users.

Product Advantages

01

Available with dynamic/static ring combination seal (leak‑tight at ±500 Pa) or gland packing flexible seal (reduces air ingress). Effective sealing minimizes humid air entry, prevents dilute acid formation from concentrated sulfuric acid, greatly reduces corrosion, and extends shell life.
02

Made of acid‑resistant material with high machining precision and low runout, ensuring reliable sealing and stable operation.
03

Screw crushing device breaks agglomerates and sticky wall deposits. Multiple staggered rows of lifters agitate the material, prevent sliding friction damage to the shell, and improve heating uniformity. Special lifter angle design avoids excessive dust generation.
04

Jacket is fabricated separately; special external insulation structure prevents insulation wool from being blown off, ensuring uninterrupted production.

Parameter

Main Technical Parameters
No.	Model	Feed Quantity（t/h）	Revolving Speed（rpm）	Qty Of Support	Reducer Model	Motor Model	Power（KW）
1	Ø0.8×10m	0.2~0.5	0.26~2.6	2	BWD4-43	YVFE3-132S-4	5.5
2	Ø1.5×15m	3~4	0.26~2.6	2	ZSY315-71	YVFE3-180L-4	22
3	Ø2.5×25m	6~8	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
3	Ø2.5×25m	6~8	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
4	Ø2.5×33m（Internal Jacket）	12~13	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
4	Ø2.5×33m（Internal Jacket）	12~13	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
5	Ø2.6×25m	8~10	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
5	Ø2.6×25m	8~10	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
6	Ø2.8×42m(Internal Jacket)	15~16	0.26~2.6	2	Main：ZSY450-40	Main：YVFE3-315L1-6	90
6	Ø2.8×42m(Internal Jacket)	15~16	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
7	Ø3.0×30m	11~12	0.26~2.6	2	Main：ZSY450-40	Main：YVFE3-315L1-6	110
7	Ø3.0×30m	11~12	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
8	Ø3.2×40m	14~16	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	132
8	Ø3.2×40m	14~16	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
9	Ø3.2×48m(Internal Jacket)	18~20	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	132
9	Ø3.2×48m(Internal Jacket)	18~20	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
10	Ø3.5×35m	16~18	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	160
10	Ø3.5×35m	16~18	0.26~2.6	2	Auxiliary：ZSY180-25	Auxiliary：YE3-180M-4	18.5
11	Ø3.5×38m	16~18	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	160
11	Ø3.5×38m	16~18	0.26~2.6	2	Auxiliary：ZSY180-25	Auxiliary：YE3-180M-4	18.5
12	Ø3.0×50m(Internal Jacket)	23~28	0.26~2.6	2	Main：ZSY560-56	Main：YVFE3-355M1-6	160
12	Ø3.0×50m(Internal Jacket)	23~28	0.26~2.6	2	Auxiliary：ZSY160-22.4	Auxiliary：YE4-160L-4	11
13	Ø4.0×50m	18~23	0.26~2.6	2	Main：ZSY560-35.5	Main：YVFE3-3552-6	220
13	Ø4.0×50m	18~23	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	11
14	Ø4.0×60m(Internal Jacket)	28~35	0.26~2.6	2	Main：ZSY560-35.5	Main：YVFE3-3552-6	220
14	Ø4.0×60m(Internal Jacket)	28~35	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	11
15	Ø4.3×58m	23~28	0.26~2.6	2	Main：ZSY630-40	Main：YVFE3-4001-6	400
15	Ø4.3×58m	23~28	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	30
16	Ø4.5×60m	40~45	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
16	Ø4.5×60m	40~45	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
17	Ø4.6×60m	25~30	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
17	Ø4.6×60m	25~30	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
18	Ø5.0×50m	33~35	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
18	Ø5.0×50m	33~35	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
19	Ø5.4×56m	27~33	0.26~2.6	2	Main：MH3S230HB40	Main：YVFE3-4501-6	560
19	Ø5.4×56m	27~33	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45

Note: It is applicable to the acid roasting of spodumene, spodunmene and other lithium concentrates. The heating temperature is 200~350℃. This table is for reference only. Please call us for specific model selection.
