Introduction of Stone Removal Machine from Clay

In the brick and tile,ceramsite sintering industry, stone removal machine is a very common equipment,especially for clay sintering. Clay often contains hard materials such asstones or metal blocks. If it is not removed, it will damage the subsequentprocessing equipment and affect the sintering quality of the ceramsite. The stoneremoval machine is a special product designed to solve this problem.

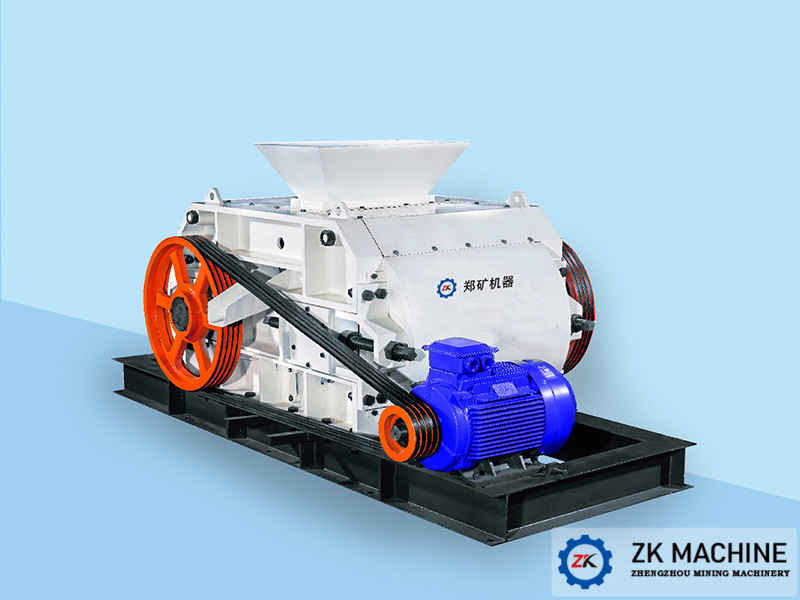

The main structure ofthe stone removal machine includes the wheel roller part, the protective cover,the driving device, the support frame and other auxiliary structures. The wheelroller part is composed of two wheel rollers and its rotating shaft, bearingseat and so on. The wheel roller 1 is a spiral roller, and the wheel roller 2is a bachelor, which is connected to the driving part through a pulley and abelt. There is a gap between the wheel roller 1 and the wheel roller 2 to allowthe clay to pass through after being pressed, and there are spiral grooves onthe outer surface of the wheel roller 1 for discharging stones. All wheelrollers are installed on the rotating shaft, and the rotating shaft is fixed onthe supporting frame through the bearing seat. In addition, there are longholes in the bearing seat, which can move the bearing seat left and right, andthen adjust the gap between the two wheel rollers to achieve the purpose ofadjusting the particle size of the large-grain stones. If the gap is small, theminimum particle size of the stones removed by widening the gap becomes larger.At the same time, a thimble is installed on the support frame, which is used tofix the bearing seat after movement, to prevent the bearing seat from movingleft and right during running.

The transmission part islocated on both sides of the wheel roller and includes two motors, pulleys andtheir accessories. The motor and the pulley are connected by a key. The motordrives the wheel roller 1 and the wheel roller 2 to rotate through the pulleyand the belt. The wheel roller 1 and the wheel roller 2 rotate towards eachother.

When the equipment is inoperation, the wheel roller 1 and the wheel roller 2 rotate towards each otherunder the drive of the driving device. The material enters between the wheelroller 1 and the wheel roller 2 through the feed port on the cover, and afterbeing pressed, it enters the material receiving device of the followingequipment through the gap between the wheel roller 1 and the wheel roller 2.

At the same time, due tothe high hardness and large outer diameter, the large-grain stones cannot passthrough the gap between the wheel roller 1 and the wheel roller 2. Since thesurface of the wheel roller 1 has a spiral inverted trapezoidal gully, stonesthat cannot pass through the gap will follow the gully. As the wheel roller 1rotates, it is discharged from the side to achieve the effect of removing stonefrom clay.
