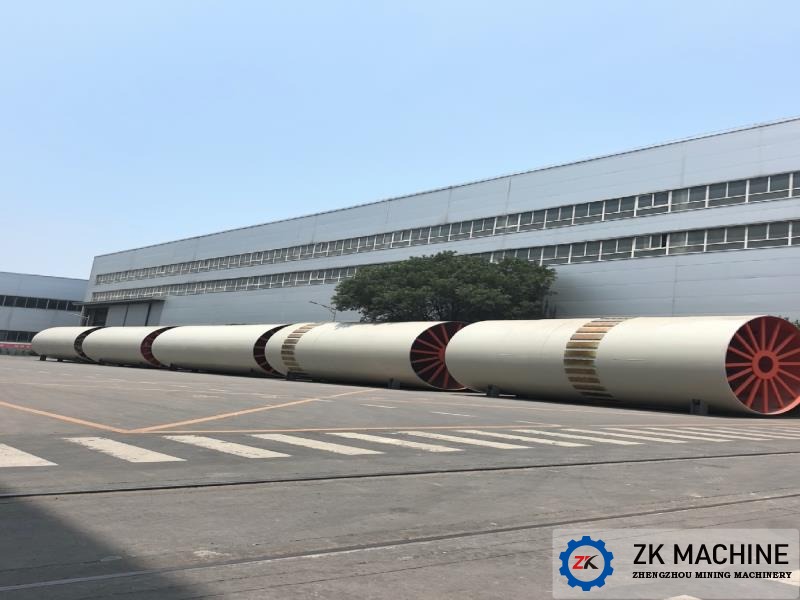

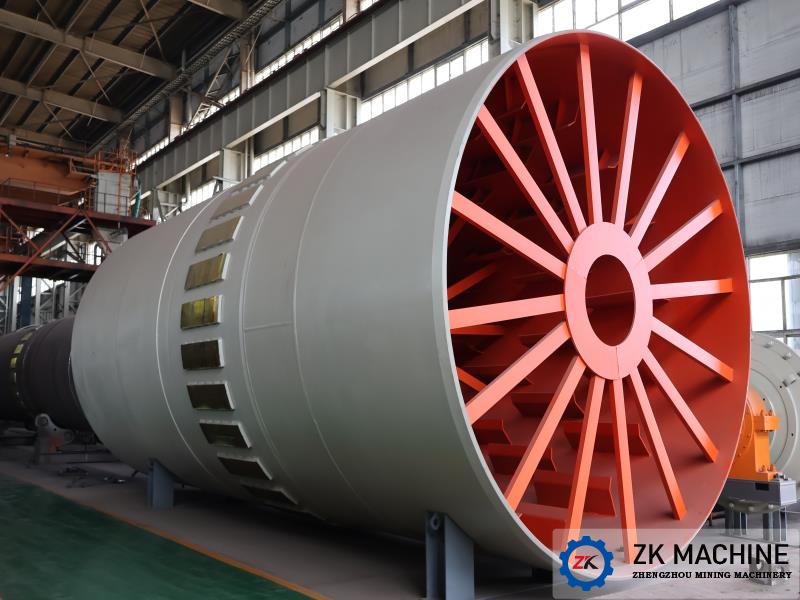

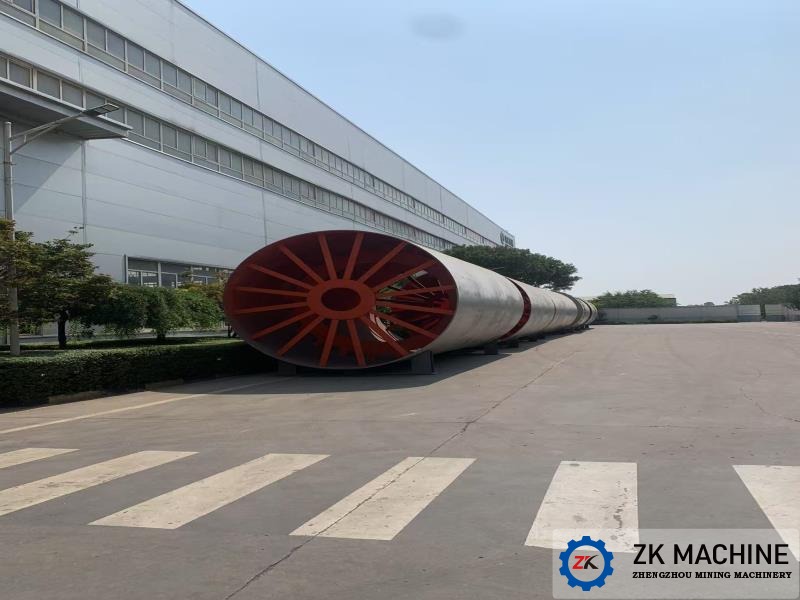

Acidizing Rotary Kiln

Model:Ø0.8×10m
Capacity:0.2~33 tons/hour

Raw Materials:

Spodumene and amblygonite

Application:

It is suitable for the acidification roasting of lithium concentrates.

Chat Online Leave Message

Introduction

The company can produce rotary kiln with diameter Φ1-Φ6m, which is used for acidification roasting of lithium concentrate by new lithium battery materials. The support of this kind of kiln is divided into rolling and sliding types, The drive can adopt DC or AC frequency conversion speeder regulation, and there are various forms of seals to adapt to different working conditions. The company can design various non-standard kilns according to the special requirements of users.

Application:

It is suitable for the acidification roasting of lithium concentrates such as spodumene and amblygonite.

Product Advantages

01

Acidizing kilns with different structures can be designed according to customer requirements to meet customer working conditions.
02

In order to ensure the external heating efficiency, the jacket is equipped with a special air duct to ensure hot air thermal efficiency and precise temperature control;
03

The outer and inner walls of the cylinder are equipped with special anti-stick wall devices to ensure the smoothness of the material.
04

The support of this kind of kiln is divided into rolling and sliding types, The drive can adopt DC or AC frequency conversion speeder regulation, and there are various forms of seals to adapt to different working conditions.

Parameter


No.	Model	Feed Quantity（t/h）	Revolving Speed（rpm）	Qty Of Support	Reducer Model	Motor Model	Power（kW）
1	Ø0.8×10m	0.2~0.5	0.26~2.6	2	BWD4-43	YVFE3-132S-4	5.5
2	Ø1.5×15m	3~4	0.26~2.6	2	ZSY315-71	YVFE3-180L-4	22
3	Ø2.5×25m	6~8	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
3	Ø2.5×25m	6~8	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
4	Ø2.5×33m（Internal Jacket）	12~13	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
4	Ø2.5×33m（Internal Jacket）	12~13	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
5	Ø2.6×25m	8~10	0.26~2.6	2	Main：ZSY400-40	Main：YVFE3-315S-6	75
5	Ø2.6×25m	8~10	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-132M-4	7.5
6	Ø2.8×42m(Internal Jacket)	15~16	0.26~2.6	2	Main：ZSY450-40	Main：YVFE3-315L1-6	90
6	Ø2.8×42m(Internal Jacket)	15~16	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
7	Ø3.0×30m	11~12	0.26~2.6	2	Main：ZSY450-40	Main：YVFE3-315L1-6	110
7	Ø3.0×30m	11~12	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
8	Ø3.2×40m	14~16	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	132
8	Ø3.2×40m	14~16	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
9	Ø3.2×48m(Internal Jacket)	18~20	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	132
9	Ø3.2×48m(Internal Jacket)	18~20	0.26~2.6	2	Auxiliary：ZSY160-25	Auxiliary：YE3-160M-4	11
10	Ø3.5×35m	16~18	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	160
10	Ø3.5×35m	16~18	0.26~2.6	2	Auxiliary：ZSY180-25	Auxiliary：YE3-180M-4	18.5
11	Ø3.5×38m	16~18	0.26~2.6	2	Main：ZSY450-35.5	Main：YVFE3-315L2-6	160
11	Ø3.5×38m	16~18	0.26~2.6	2	Auxiliary：ZSY180-25	Auxiliary：YE3-180M-4	18.5
12	Ø3.0×50m(Internal Jacket)	23~28	0.26~2.6	2	Main：ZSY560-56	Main：YVFE3-355M1-6	160
12	Ø3.0×50m(Internal Jacket)	23~28	0.26~2.6	2	Auxiliary：ZSY160-22.4	Auxiliary：YE4-160L-4	11
13	Ø4.0×50m	18~23	0.26~2.6	2	Main：ZSY560-35.5	Main：YVFE3-3552-6	220
13	Ø4.0×50m	18~23	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	11
14	Ø4.0×60m(Internal Jacket)	28~35	0.26~2.6	2	Main：ZSY560-35.5	Main：YVFE3-3552-6	220
14	Ø4.0×60m(Internal Jacket)	28~35	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	11
15	Ø4.3×58m	23~28	0.26~2.6	2	Main：ZSY630-40	Main：YVFE3-4001-6	400
15	Ø4.3×58m	23~28	0.26~2.6	2	Auxiliary：ZSY224-28	Auxiliary：YE3-200L-4	30
16	Ø4.5×60m	40~45	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
16	Ø4.5×60m	40~45	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
17	Ø4.6×60m	25~30	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
17	Ø4.6×60m	25~30	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
18	Ø5.0×50m	33~35	0.26~2.6	2	Main：ZSY710-40	Main：YVFE3-4002-6	450
18	Ø5.0×50m	33~35	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45
19	Ø5.4×56m	27~33	0.26~2.6	2	Main：MH3S230HB40	Main：YVFE3-4501-6	560
19	Ø5.4×56m	27~33	0.26~2.6	2	Auxiliary：ZSY280-28	Auxiliary：YE3-225M-4	45

Note:It is applicable to the acid roasting of spodumene, spodunmene and other lithium concentrates. The heating temperature is 200~350℃. This table is for reference only. Please call us for specific model selection.
